How to edit and play programs via TF card or USB disk

Edit and play program by TF card or U-disk

Aug. 16, 2025

Edit and play program by TF card or U-disk

1.Full screen play

a.put video/picture in the root catalogy of the TF card/U-disk. Video and picture will play in a loop.as follow:

b.Create ‘Playtask’ folder in the root catalogy of the TF card/U-disk.Then creat a ‘1’folder in ‘Playtask’folder,

and put the video/picture in the ‘1’folder.Video/picture will play in a loop.

2. split areas play

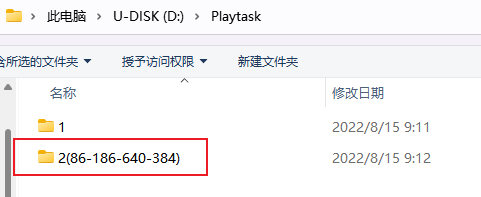

‘Playtask’ folder in the root catalogy of the TF card/U-disk.Then creat ‘1（X-Y-W-H）’and ‘2（X-Y-W-H）’folders

in ‘Playtask’ folder. X for X-coordination;Y for Y-coordination;W for area’s width;H for area’s height, put the video/picture in the folders.Video/picture will play in a loop.

PS：TF card/U-disk support playing video/picture only.

1.Support video’s format -H.264，VP8, MAV , WMV , AVS , H.263 , MPEG4 and so on， 1080p at most；

2.Supported picture’s format- JPG、BMP、PNG and so on.
